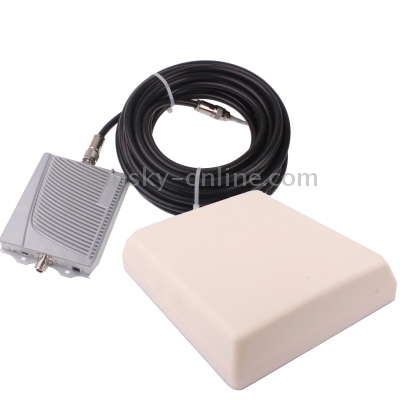

SUNSKY - Dual Band GSM900 & GSM1800 Signal Booster + Outdoor Antenna

≥ 1 unit	$212.87
≥ 2 units	$202.73
≥ 1 case	$198.68
≥ 4 cases	$194.62
≥ 10 cases	$190.57

Overview

* Single Booster Speciation:

1) Frequency range: a) Up link: GSM 890~915/DCS 1710~1785(MHZ); b) Downlink: GSM 935~960/DCS 1805~1880(MHZ)

2) Gain(db): GSM/DCS; 50/45

3) Coverage: 500~800m2

4) Output power: >=17DB

5) Pass band ripple: a) GSM: 10DB; b) DCS: 10DB

6) Guard band rejection: a) GSM: (BW-60db)<=42MHZ, (BW-70db)<=45; b) DCS: (BW-60db)<=104MHZ

7) I/O return loss: <=-10DB

8) Intermediation attenuation: >=40DBC

9) Transmission Delay: <=0.5us

10) Power supply: AC 110~220V+-10% 45~55HZ

11) Function: Power supply LED denote

12) Product Size:176x122x27mm

13) Weight: 825g

* Outdoor Antenna speciation:

1) Model: SGR-DGCTX-BG-G7/8

2) Frequency range: 800~960/1710~2500MHZ

3) Gain: 7dBi/8dBi

4) Product size: Approx. 207x178x42.35mm

5) Weight: 395g

OEM are Welcome! we can print customer's artwork and logo

Type of Packing: Color Box

Package Includes: 2m N Male to N Male Cable, User Manual, Travel Charger

We will send the correct Plug Adapter that suitable for the Country in the shipping address:

	Europe Plug Adapter (2 Pin Round Pin): Europe countries, Africa, Middle East
	USA Plug Adapter (2 Pin Flat Pin): United States, South America, Caribbean, Canada, Japan, Korea, Philippines, Thailand and Taiwan
	Australia/New Zealand 2 Pin Plug Adapter: Australia, New Zealand, Argentina
	UK Plug Adapter (3 Pin Flat Pin): England, Ireland, Scotland, Hong Kong, Pakistan, Singapore, Malaysia, Vietnam, Maldives and Qatar
