- Item #: S-SPC-1110
3277 views
Overview
* Installation

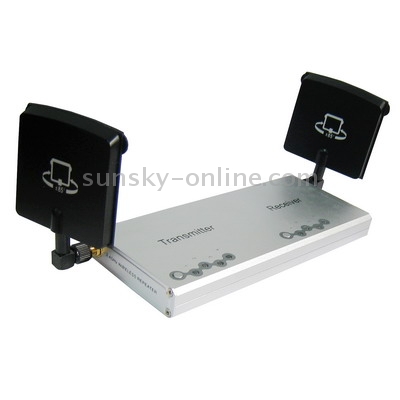

1) Installing the transmitting antenna. Fixed the yagi to the wall for suitable location with the screw. The yagi should be point to the camera
2) Connect the antenna to Wireless transceiver. User the cable connects the transmitter and yagi for picture two.
3) Connect the adapter (DC 8V) to the receiver.
* Specifications
1) Transmission frequency: 2400~483MHz
2) Modulation type: FM
3) TV Mode: PAL/NTSC (AUTO)
4) Transmission power: 7~10Mw
5) Unobstructed effective range: 100m (min)
6) Channel select: push button switches
7) Channel indicator: LED
8) Frequency stability: +/-100KHz
9) Receiving sensitivity: ≤-85dBm
10) Video output impedance: 75ohm
11) Video output level: 1.0+/-0.4Vp-p
12) SNR audio: 50dB

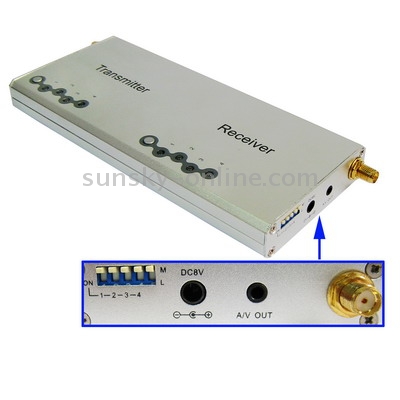

13) AV output jack: 3.5mm(audio+video)
14) Antenna input jack: SMA
15) RF input impedance: 50ohm
16) Consumption current: 260mA( Max)
17) Power input jack: 3.5mm
18) Power supply: DC8V 300mA
19) Operating temperature: -10℃~+50℃/-14℉~122℉
20) Storage temperature: -20℃~+60℃/-4℉~140℉
21) Storage humidity: 85%
22) Dimensions(W*H*D): 156mm*68mm*19mm(MAINBODY)
1) Installing the transmitting antenna. Fixed the yagi to the wall for suitable location with the screw. The yagi should be point to the camera
2) Connect the antenna to Wireless transceiver. User the cable connects the transmitter and yagi for picture two.
3) Connect the adapter (DC 8V) to the receiver.
* Specifications
1) Transmission frequency: 2400~483MHz
2) Modulation type: FM
3) TV Mode: PAL/NTSC (AUTO)
4) Transmission power: 7~10Mw
5) Unobstructed effective range: 100m (min)
6) Channel select: push button switches
7) Channel indicator: LED
8) Frequency stability: +/-100KHz
9) Receiving sensitivity: ≤-85dBm
10) Video output impedance: 75ohm
11) Video output level: 1.0+/-0.4Vp-p
12) SNR audio: 50dB
13) AV output jack: 3.5mm(audio+video)
14) Antenna input jack: SMA
15) RF input impedance: 50ohm
16) Consumption current: 260mA( Max)
17) Power input jack: 3.5mm
18) Power supply: DC8V 300mA
19) Operating temperature: -10℃~+50℃/-14℉~122℉
20) Storage temperature: -20℃~+60℃/-4℉~140℉
21) Storage humidity: 85%
22) Dimensions(W*H*D): 156mm*68mm*19mm(MAINBODY)
OEM are Welcome! we can print customer's artwork and logo
Type of Packing: Color Box

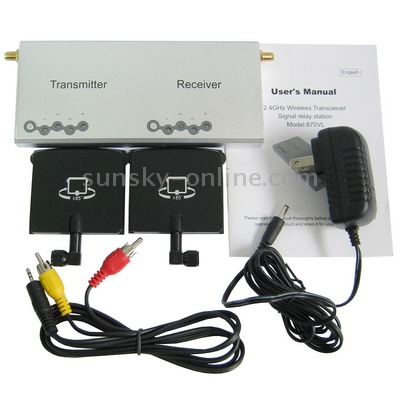

Package Includes: User Manual, Travel Charger, AV Cable
We will send the correct Plug Adapter that suitable for the Country in the shipping address:
 |
Europe Plug Adapter (2 Pin Round Pin): Europe countries, Africa, Middle East |
 |
USA Plug Adapter (2 Pin Flat Pin): United States, South America, Caribbean, Canada, Japan, Korea, Philippines, Thailand and Taiwan |
 |
Australia/New Zealand 2 Pin Plug Adapter: Australia, New Zealand, Argentina |
 |
UK Plug Adapter (3 Pin Flat Pin): England, Ireland, Scotland, Hong Kong, Pakistan, Singapore, Malaysia, Vietnam, Maldives and Qatar |
