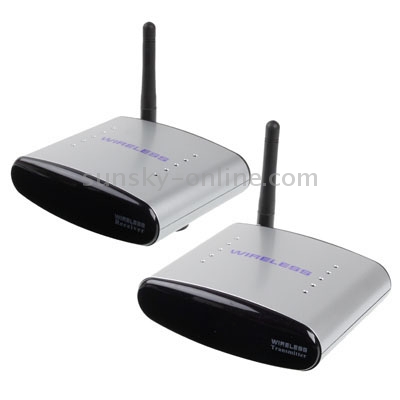

PAT-220 2.4GHz 4 Channels Wireless AV Transmitter & Receiver, Compatible with DVD, DVR, CCD Camera, IPTV, Satellite Set-Top Box and Other AV Output Devices, Maximum Transmission Distance: 150m, Support for infrared remote control Lead Time: 1~3 Days.

Wholesale: $28.30
Case of 20 Units: $594.40 $554.60
   ≥ 1 unit $29.72
   ≥ 2 units $28.87
   ≥ 1/4 case $28.30
   ≥ 1/2 case $28.02
   ≥ 1 case $27.73
   ≥ 4 cases $27.17
   ≥ 10 cases $26.60


Shipping Cost:   by
Sales Manager: Ms. Candy
Item #: S-SPC-1115
 5143 clicks (4 reviews)

Hot Items

Featured Products


Recently Viewed


1) Use 2.4GHz ISM frequency band, support 4 groups of channels. You can select these channels to avoid interference from signals of a wireless router, etc.

2) Wireless transmission is suitable for one-floor or two-floors

3) The transmitter and the receiver are used in the same channel in a pair and can be used in the modes of point-to-multipoint or multipoint-to-multipoint

4) Compatible with DVD, DVR, CCD Camera, IPTV, Satellite Set-Top Box and Other AV Output Devices

5) The product is equipped with super strong IR signal transmitting function or used in conjunction with an IR signal extension wire

6) Images received by means of radio are vivid and stable, the color is flamboyant, and the sound is clear

7) Supports video transmission of PAL / NTSC system and stereo audio transmission

8) Fully hardware designed. There is no need to install software. Plug and play, simple and convenient

9) Dimensions: 100 x 85 x 30mm


1) Power input: DC 5V ---1000mW

2) Video input: 1Vp-p (PAL / NTSC)

3) Audio input: 1.5Vp-p (dual channels)

4) Video output: 1Vp-p (PAL / NTSC)

5) Audio output: 1.5Vp-p (dual channels)

6) Transmitting RF:

Transmission frequency: 433.92MHz±200KHz Super heterodyne

Carrier frequency: 38KHz

IR signal receiving: <= 10m

7) Receiving RF:

Transmission frequency: 433.92MHz±500KHz Super heterodyne

Carrier frequency: 38KHz

IR signal receiving: <= 5m

8) Maximum Transmission Distance: 150m
Package Weight
One Package Weight 0.86kgs / 1.88lb
Qty per Carton 20
Carton Weight 14.00kgs / 30.86lb
Carton Size 54cm * 42cm * 32cm / 21.26inch * 16.54inch * 12.6inch
We will send the correct Plug Adapter that suitable for the Country in the shipping address:
Europe Plug Adapter (2 Pin Round Pin):
Europe countries, Africa, Middle East
USA Plug Adapter (2 Pin Flat Pin):
United States, South America, Caribbean, Canada, Japan, Korea, Philippines, Thailand and Taiwan
Australia/New Zealand 2 Pin Plug Adapter:
Australia, New Zealand, Argentina
UK Plug Adapter (3 Pin Flat Pin):
England, Ireland, Scotland, Hong Kong, Pakistan, Singapore, Malaysia, Vietnam, Maldives and Qatar
Due to package variations from suppliers, the accessories customers receive may be different from the images displayed.
