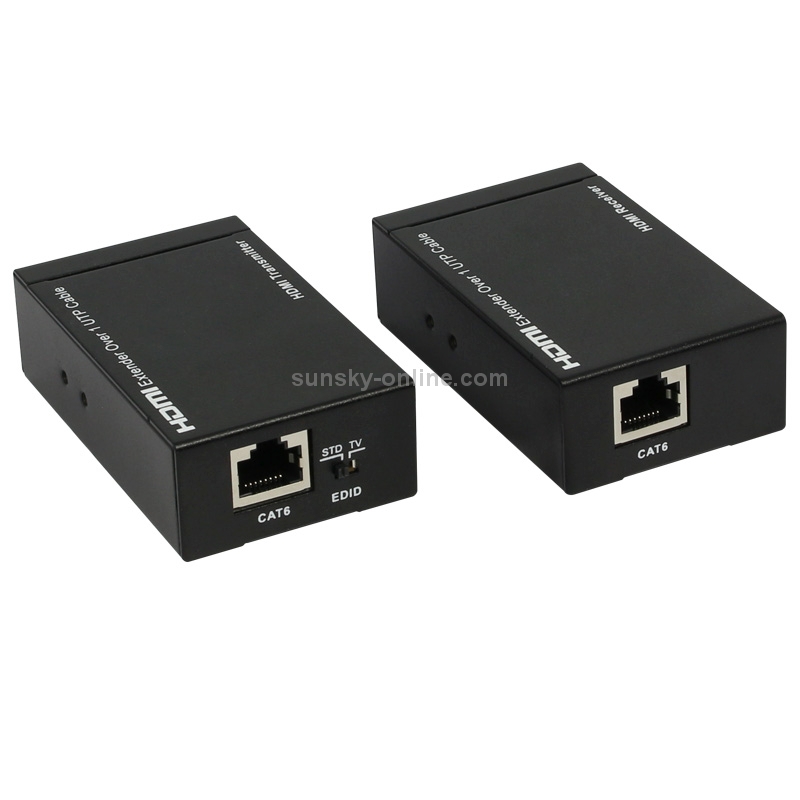

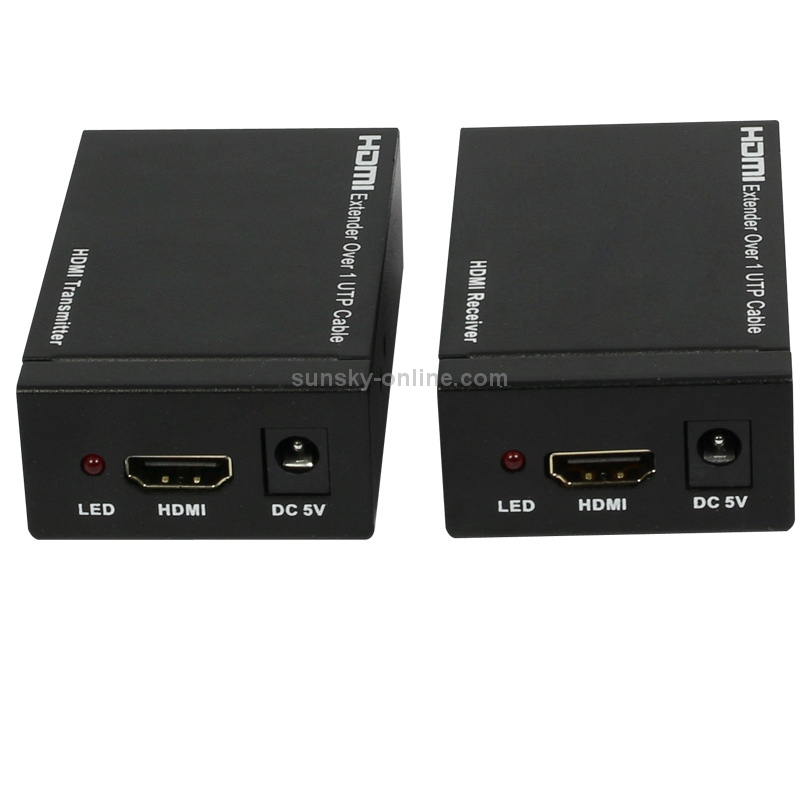

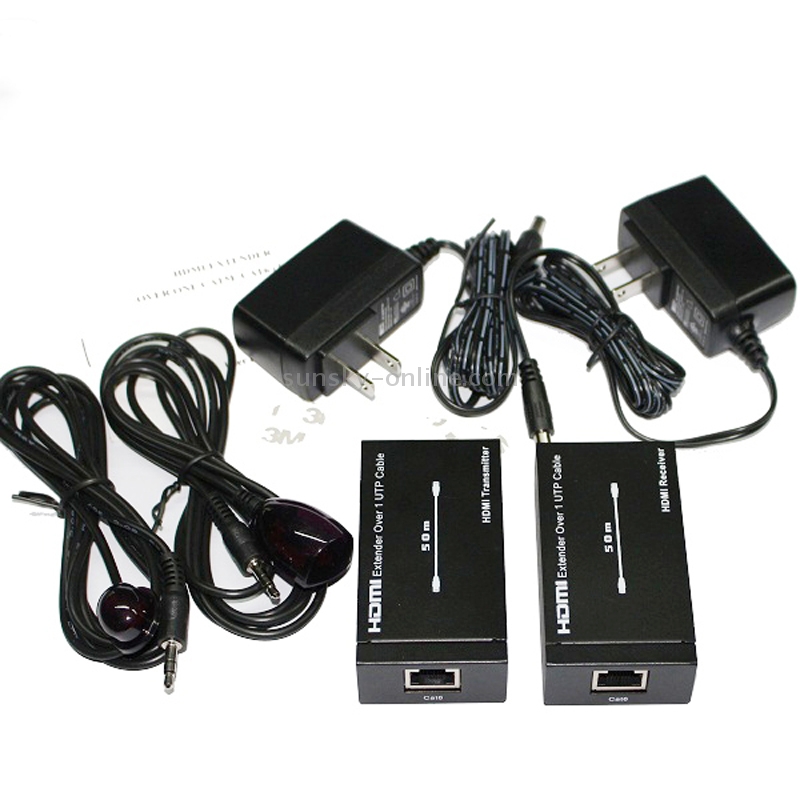

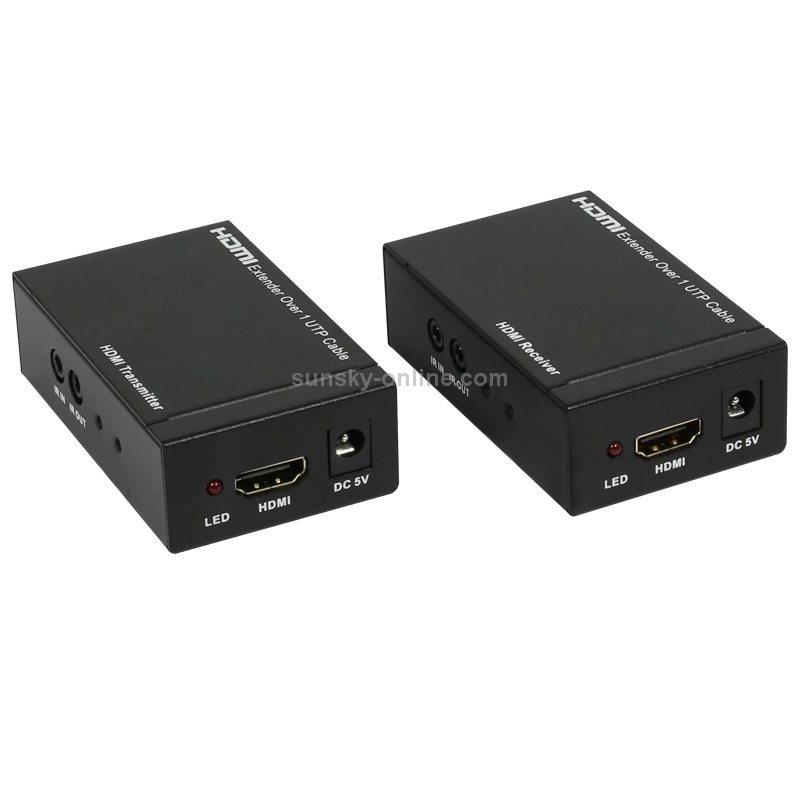

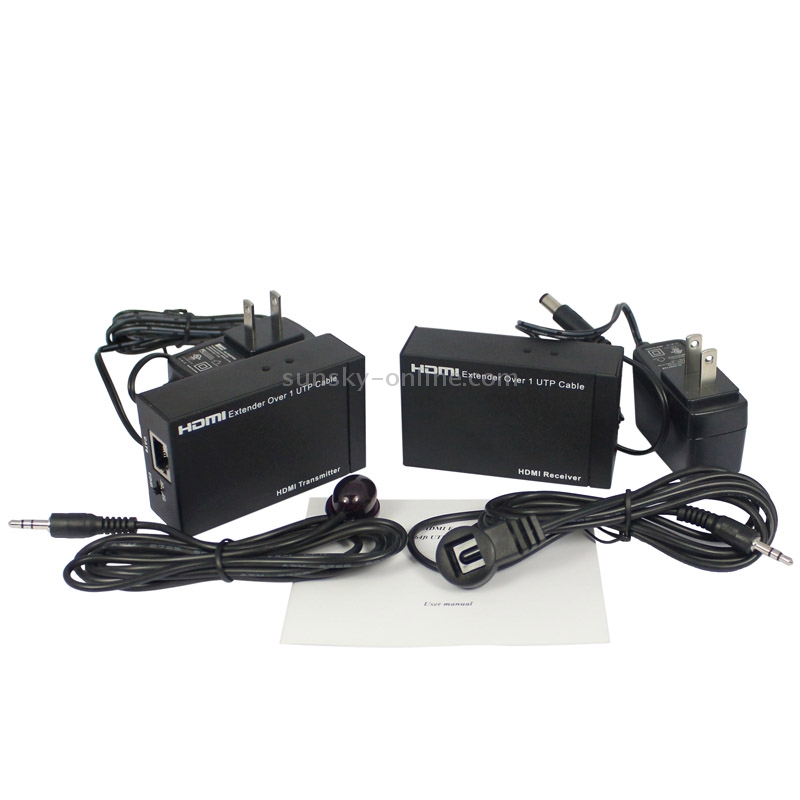

HDMI Extender over single 50m / 164ft UTP Cables with Dual IR Control(Black) Lead Time: 2~5 Days.

Wholesale: $46.37
Case of 8 Units: $389.52 $363.52 (6.800kg, 400x300x300mm)
Accumulate last 30-day orders, enjoy lower price
   ≥ 1 unit $48.69
   ≥ 2 units $46.37
   ≥ 1/2 case $45.91
   ≥ 1 case $45.44
   ≥ 4 cases $44.52
   ≥ 10 cases $43.59


Country/Region:

Shipping Cost:   by

Sales Manager: Ms. Lindsay
+86-15999691028
    Images      Quotations
Item #: S-PC-0384
 3537 views


Hot Items

Featured Products

Audio Video

Recently Viewed

Description

1) Features:

- Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable

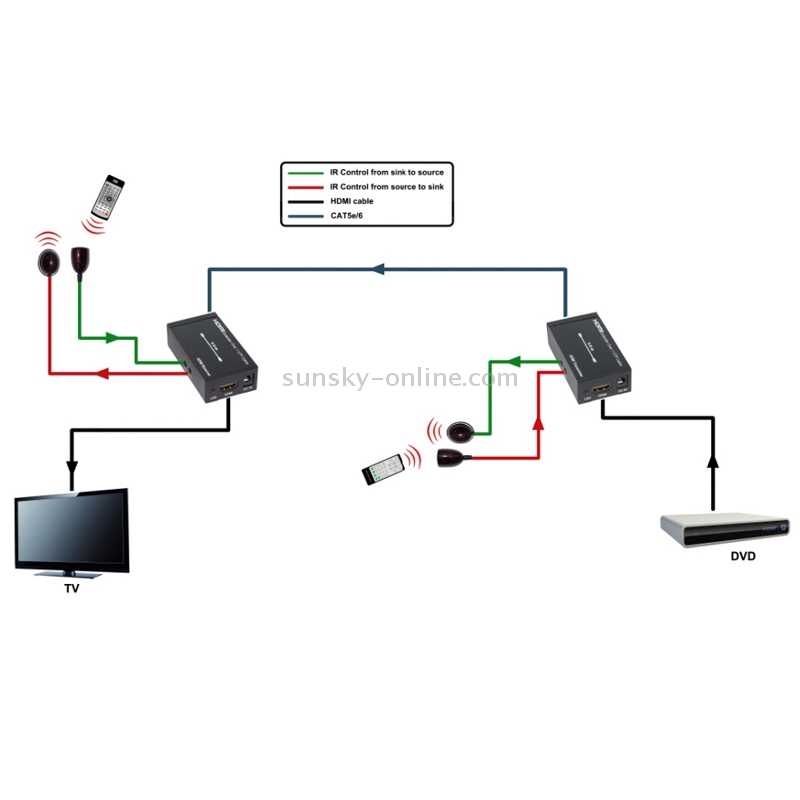

- Bi-directional IR system allowing for control of source or display (IR accessories included)

- 2D/3D EDID management

- Transmission Range: Extends 1080p resolution up to 164ft/50m over a single Cat5e or Cat6 cable

- Works with HDMI and HDCP compliant devices

- Supports up to 1080p High Definition resolution

- Compact design for an easy and flexible installation

2) Specifications:

- Video Bandwidth: Single-link 165Mhz [ 4.95Gbps]

- Video Support: 480i/480p/720p/1080i/1080p @60

- Audio Support: Surround Sound (up to 7.1 ch) or stereo digital audio

- Transmission Range: HD [1080p 24-bit color] – up to 50m [164ft]

- Input TMDS Signal: 3.3 volts

- Input DDC Signal: 5.0 volts/P-P

- ESD Protection: Human Body model: +/- 8 kV (air-gap discharge)

- +/- 4 kV (contact discharge)

- PCB stack-up: 4 layouts

- HDMI connector: Type A 19 pin female

- RJ-45 connector: WE/SS 8P8C

- 3.5mm connector: (TX and RX) IR Receiver/IR Blaster

3) Housing: Metal enclosure

4) Power Supply: 5V1A DC

5) Power consumption: 2.5 watts (TX); 1.2 watts (RX)

6) Operation temperature: 32~104 °F

7) Storage temperature: -4 ~140 °F

8) Relative humidity: 20~90 % RH (no condensation)
Specification:
Package Weight
One Package Weight 0.89kgs / 1.95lb
Qty per Carton 8
Carton Weight 6.80kgs / 14.99lb
Carton Size 40cm * 30cm * 30cm / 15.75inch * 11.81inch * 11.81inch
OEM are Welcome! we can print customer's artwork and logo
We will send the correct Plug Adapter that suitable for the Country in the shipping address:
Europe Plug Adapter (2 Pin Round Pin):
Europe countries, Africa, Middle East
USA Plug Adapter (2 Pin Flat Pin):
United States, South America, Caribbean, Canada, Japan, Korea, Philippines, Thailand and Taiwan
Australia/New Zealand 2 Pin Plug Adapter:
Australia, New Zealand, Argentina
UK Plug Adapter (3 Pin Flat Pin):
England, Ireland, Scotland, Hong Kong, Pakistan, Singapore, Malaysia, Vietnam, Maldives and Qatar
Due to package variations from suppliers, the accessories customers receive may be different from the images displayed.
