Description

A propos du produit
1. Câble flexible de capteur de haute qualité remplacement de la caméra frontale pour iPhone 6s Plus.
2. Remplacez votre article cassé ou inutilisable par un nouveau.
3. Chaque article a été vérifié et en bon état avant l'expédition.
4. L'installation professionnelle est fortement recommandée. Nous ne serons pas responsables des dommages à votre téléphone portable / téléphone mobile que vous pourriez causer lors du remplacement des pièces de rechange.
Spécification:
Général
Compatible avec
Général
Poids d'emballage
Poids du produit individuel 0.02kgs / 0.04lb
Quantité par carton 400
Poids du carton 5.00kgs / 11.02lb
Taille du carton 26cm * 20cm * 20cm / 10.24inch * 7.87inch * 7.87inch
Classement des meilleures ventes
#334 dans la catégorie: Pièces Réparation
#3 dans la catégorie: Pièces Réparation »  Pièces réparation de iPhone 6S Plus
#1 dans la catégorie: Pièces Réparation »  Pièces réparation de iPhone 6S Plus »  Câble flexible


Guide: iPhone 6s Plus Front Panel Replacement

Use this guide to replace a cracked or broken screen in an iPhone 6s Plus. This includes removing the front-facing camera and sensor assembly, display EMI shield, and home button assembly—all of which should be transferred to your new front panel. To reassemble your device, follow these instructions in reverse order.

Buy these parts and tools
Download Guide

Step 1 - Pentalobe Screws

  • Power off your iPhone before beginning disassembly.

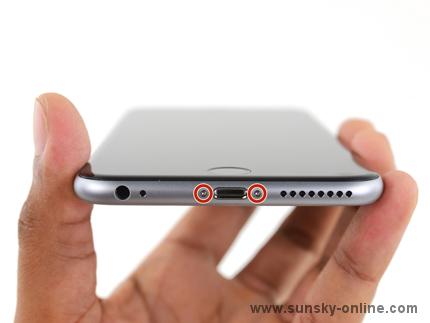

  • Remove the two 3.4 mm Pentalobe screws on either side of the Lightning port.

Step 2 - Opening Procedure

  • Opening the display on the 6s Plus separates a thin strip of adhesive around the perimeter of the display. If you prefer to replace the adhesive, have a set of new adhesive strips ready before you continue. It's possible to complete the repair without replacing the adhesive, and you probably won't notice any difference in functionality.

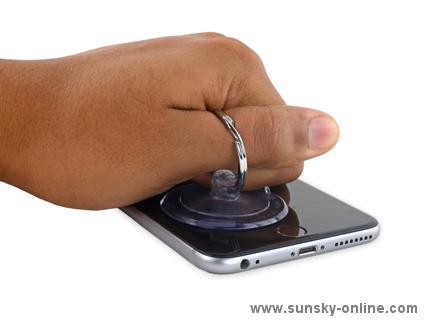

  • Apply a suction cup to the lower left corner of the display assembly.

Step 3

  • Pull up on the suction cup with firm, constant pressure to create a slight gap between the front panel and rear case.
  • Pulling too hard may damage the display assembly. Apply just enough pressure to create a small gap between the display assembly and the rear case.

Step 4

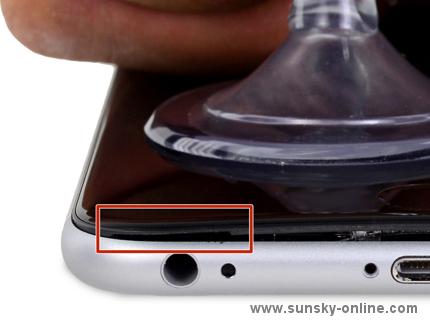

  • The safest place to pry from is the notch in the front panel above the headphone jack.

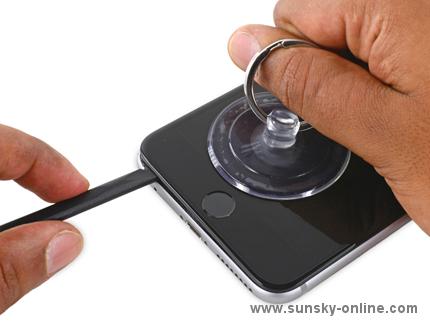

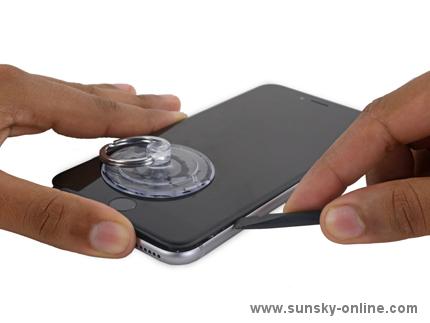

  • While still maintaining pressure on the suction cup, insert the flat tip of a spudger into the gap, directly above the headphone jack.

Step 5

  • Twist the spudger to widen the gap between the front panel and the rear case.

Step 6

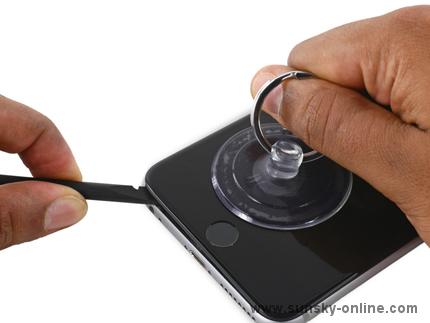

  • While firmly pulling up on the suction cup, slide the edge of the spudger under the bottom left corner of the display.

Step 7

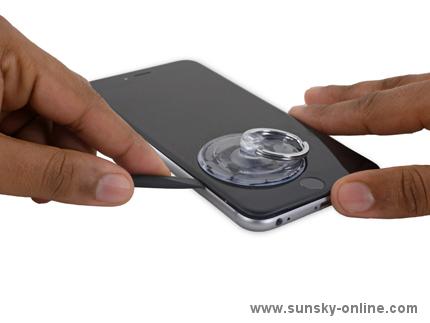

  • Slide the tip of the spudger up the left side of the phone, between the front panel and the rear case.

Step 8

  • Insert the flat tip of the spudger under the right edge of the display.
  • Slide the spudger up the right side.

Step 9

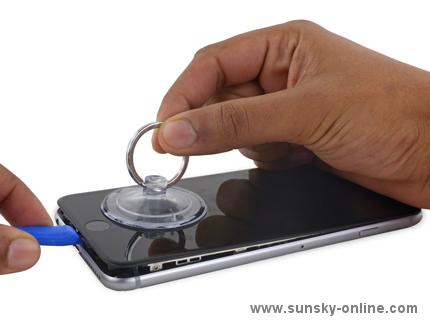

  • Use a plastic opening tool to hold down the rear case while pulling up the suction cup to open the phone.
  • Do not remove the display completely, or you will damage the data cables connecting the display near the top edge of the iPhone.

Step 10

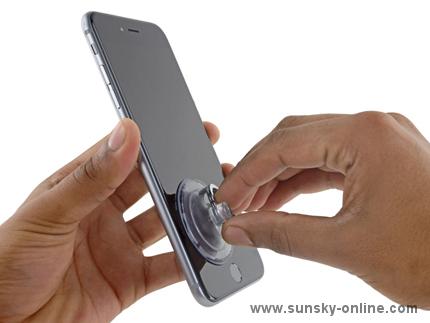

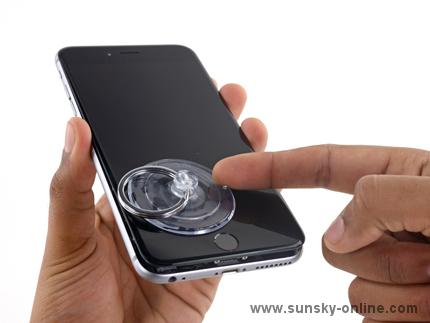

  • Pull up on the small nub on the suction cup to remove it from the display.

Step 11

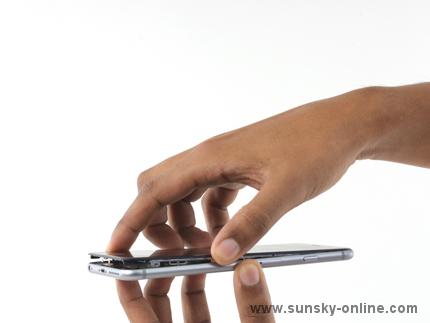

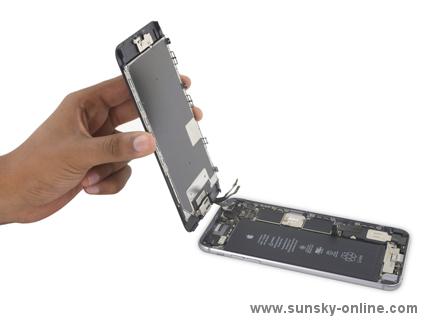

  • Open the iPhone by lifting the home button end of the display assembly away from the rear case, using the top of the phone as a hinge.
  • Don't open the display more than 90 degrees—it is still connected to the top of the phone by the display, digitizer, and front camera cables which can tear easily.

Step 12 - Battery Connector

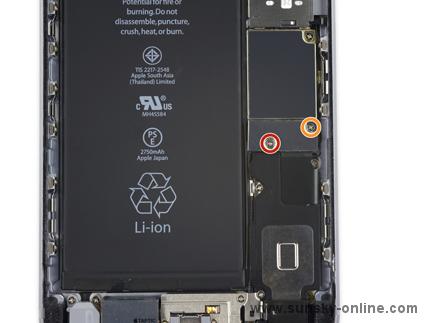

  • Remove the following Phillips screws securing the battery connector bracket to the logic board:
  • One 2.9 mm screw
  • One 2.3 mm screw

Step 13

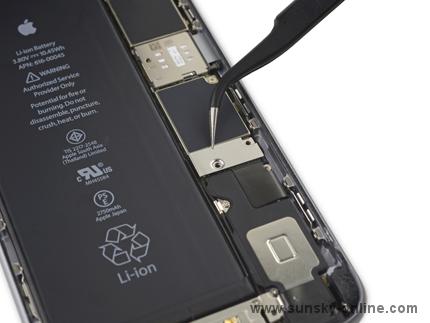

  • Remove the battery connector bracket.

Step 14

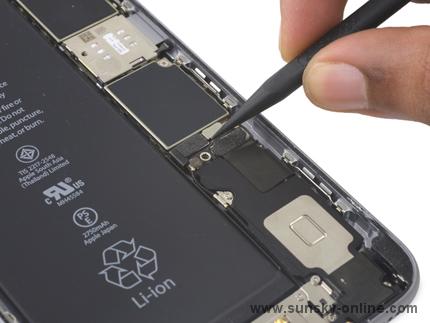

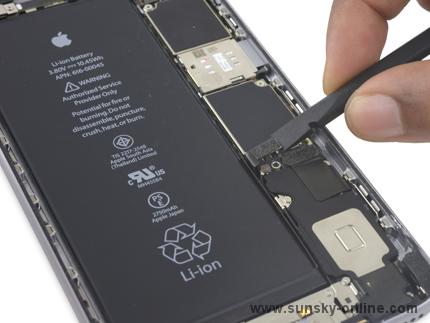

  • Use the pointed tip of the spudger to disconnect the battery connector from the logic board.

Step 15

  • Bend the connector back to ensure it doesn't make contact and power the iPhone on while you're working on it.

Step 16 - Display Assembly

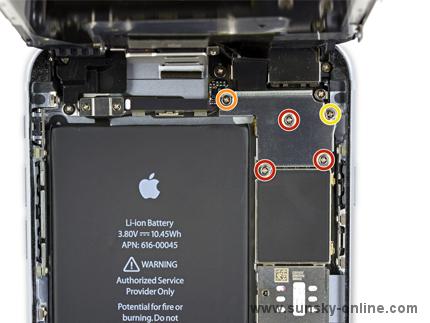

  • Remove the following Phillips screws:
  • Three 1.3 mm screws
  • One 1.6 mm screw
  • One 3.0 mm screw
  • During reassembly, it's critical to place this 3.0 mm screw in the top-right corner of the bracket. Placing it anywhere else may damage the logic board.

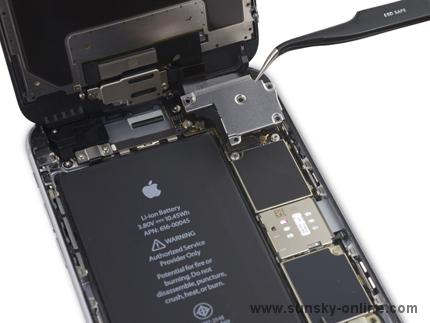

Step 17

  • Remove the display cable bracket.

Step 18

  • Be careful to only pry up on the connector itself and not the socket on the logic board.

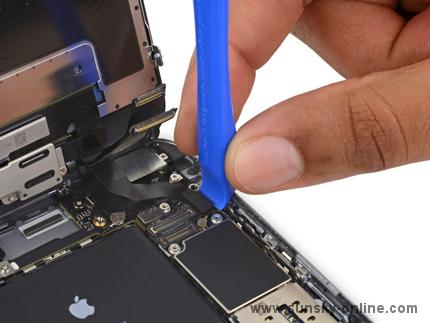

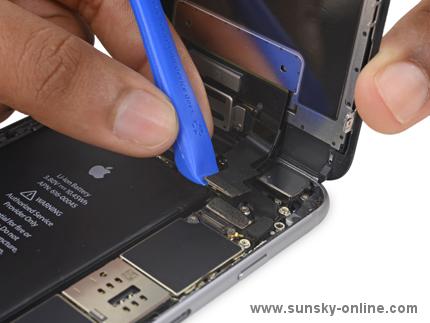

  • Use a plastic opening tool to disconnect the front-facing camera and sensor cable connector.

Step 19

  • Use a plastic opening tool to disconnect the display data cable connector.

Step 20

  • Use a plastic opening tool to disconnect the third display cable connector.

Step 21

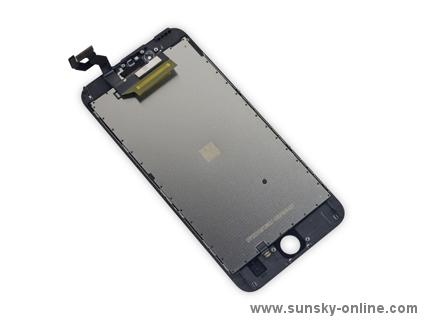

  • Remove the display assembly.
  • During reassembly, if you are applying a new set of adhesive strips around the display, first clean and remove the old adhesive and then carefully press the new adhesive strips into place.

Step 22 - Home Button Assembly

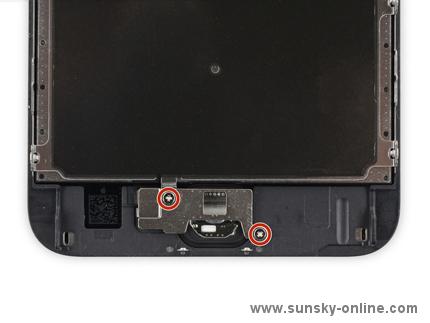

  • Remove the two 1.9 mm Phillips screws securing the home button bracket.

Step 23

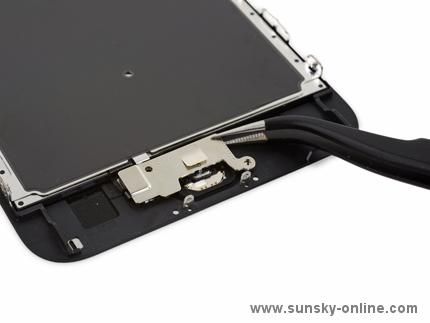

  • Remove the home button bracket.

Step 24

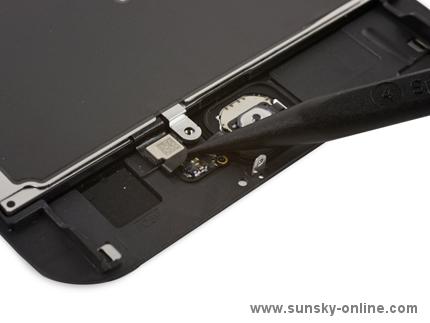

  • Use the pointed tip of a spudger to disconnect the home button cable from its connector on the display assembly.

Step 25

  • Using a heat gun, or hair dryer to heat the bottom of the display assembly, directly on top of the home button to soften the adhesive on the gasket.

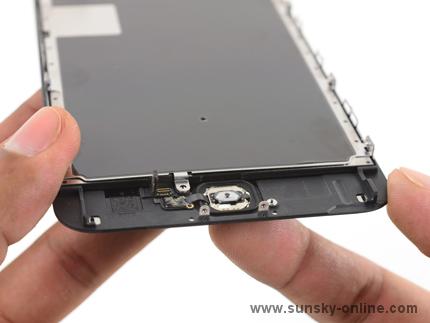

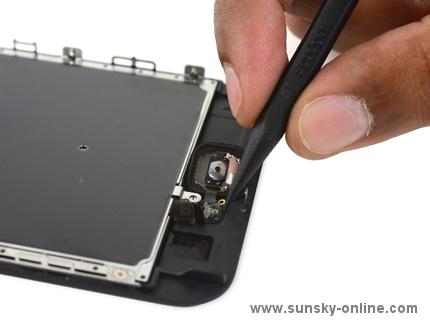

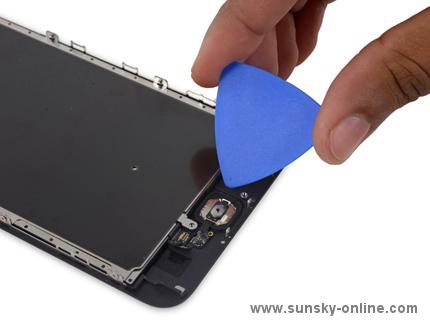

  • Insert an opening pick between the home button gasket and the front panel to lift the assembly off the panel.

Step 26

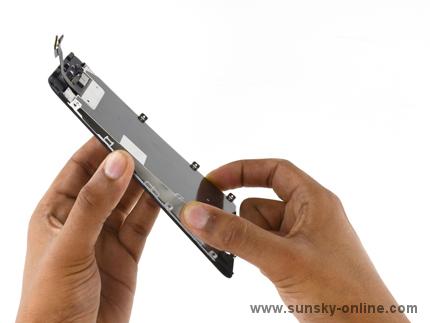

  • Using your fingertip, gently push the home button assembly up to continue separating it from the front panel.
  • If the home button does not easily come free, continue separating the adhesive with an opening pick.

Step 27

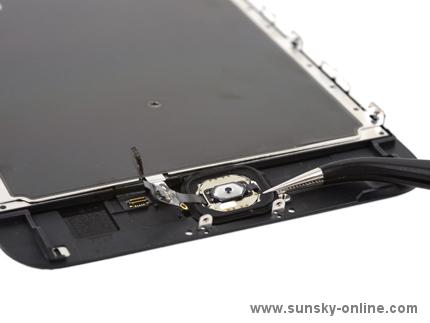

  • Use the pointed end of a spudger to pry the lightly-adhered home button flex cable off the display assembly.

Step 28

  • Remove the home button assembly.

Step 29 - Earpiece Speaker

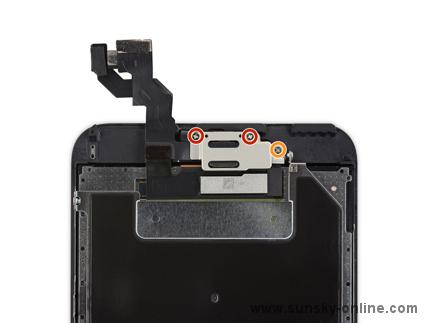

  • Remove the following three Phillips screws:
  • Two 2.7 mm screws
  • One 1.4 mm screw

Step 30

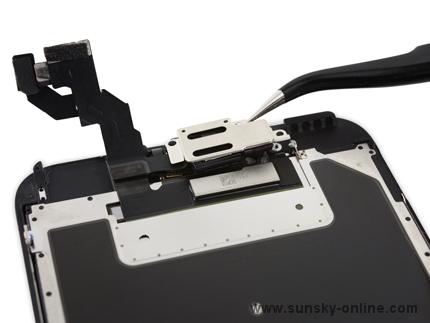

  • Remove the earpiece speaker bracket.

Step 31

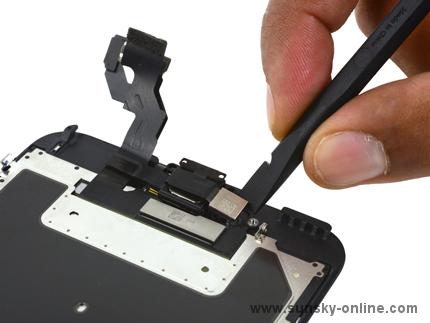

  • Use the flat end of a spudger to lift the front-facing camera out of its housing.

Step 32

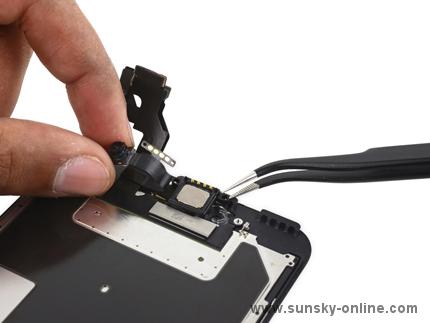

  • Pull the front-facing camera back and remove the earpiece speaker.

Step 33 - Front Facing Camera and Sensor Assembly

  • Use the pointed tip of a spudger to lift the ambient light sensor from its housing in the front panel.

Step 34

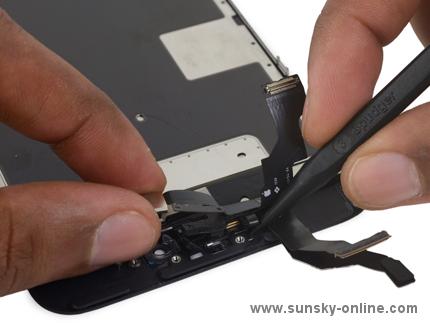

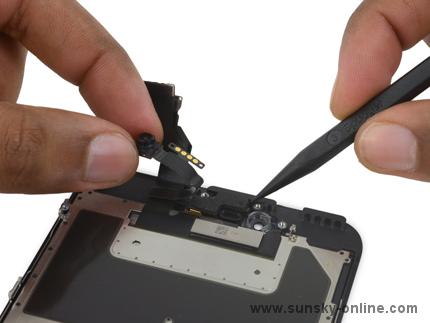

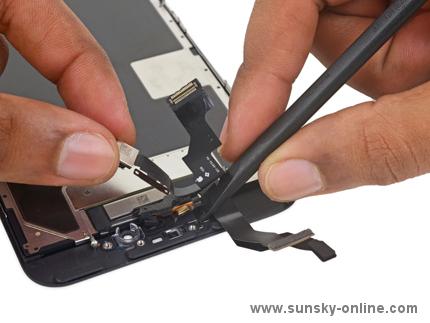

  • Insert the pointed tip of a spudger between the microphone flex cable and the front panel to break the adhesive holding it in place.

Step 35

  • Use the flat tip of a spudger to lift up the microphone and earpiece gasket.

Step 36

  • Remove the front-facing camera and sensor assembly.

Step 37 - Display EMI Shield

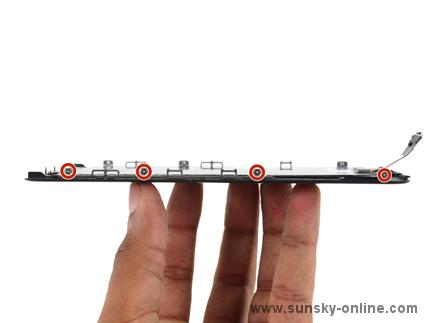

  • Remove the seven 1.5 mm Phillips screws holding the display EMI shield in place.
  • The screw on the far right in the first photo is recessed about 1.8 cm from the edge of the display.

Step 38

  • Remove the EMI shield from the front panel.

Step 39 - Front Panel

  • Front panel remains.
  • The Touch ID function will ONLY work with your phone's original home button assembly, so you'll need to transfer the home button assembly from your old display assembly to your new display assembly to retain Touch ID.
  • After reassembly, clean the touchscreen surface with an alcohol wipe prior to turning the iPhone back on. The alcohol helps dissipate any lingering static electricity, which can cause problems with the display.
  • After reassembly, connect the iPhone to an AC power source before turning it on for the first time. Once the iPhone has booted up successfully, you can disconnect the AC power.
