iPhone 6s & 6s Plus 通用 尾插螺絲,100個/包 Ship Time 發貨時間: 1~3 天

批發: $2.47
一箱500個: $1260.00 $1210.00
在App中購買

掃描產品的二維碼直接購買。

按照以下步驟操作:

1.轉到Google和Apple市場下載安裝應用

2.打開SUNSKY App並掃描左側二維碼

SUNSKY APP
   ≥ 1 個 $2.52
   ≥ 2 個 $2.49
   ≥ 1/4 箱 $2.47
   ≥ 1/2 箱 $2.45
   ≥ 1 箱 $2.42
   ≥ 4 箱 $2.40
   ≥ 10 箱 $2.37
同款產品
批量購買
添加到購物車
立即購買
國家/地區:
運費:   運輸方式:
其它方式
快遞 運費 運輸時間
Avatar
銷售經理: Ms. Kelly
+86-13725661790
我們一直努力做到低價和好的品質,並承諾保價和退換貨服務。
查看售後條款
IP6S3006RG
  • IP6S3006RG
  • IP6S3006RG
產品型號: IP6S3006RG
Click Count 1268 點擊次數

特色產品

維修配件

最近瀏覽

描述

1. 適用於iPhone 6s和6s Plus的高品質充電端口螺絲
2. 更換破損或不可操作的部件
3. 每件產品 在發貨前都已經過檢查並且狀況良好
4. 強烈建議專業安裝。對於您在更換部件時可能造成的手機損壞,我們概不負責

規格與包裝:
通用
常见规格
类型 Screw
包裹重量
單個產品重量 0.01kgs / 0.02lb
装箱数量 500
整箱重量 3.50kgs / 7.72lb
整箱尺寸 27cm * 27cm * 12cm / 10.63inch * 10.63inch * 4.72inch
銷量排名
#669 所屬類別: 維修配件
#15 所屬類別: 維修配件 »  iPhone 6S維修配件
#5 所屬類別: 維修配件 »  iPhone 6S維修配件 »  其它


指南: iPhone 6s Display Replacement

Use this guide to replace the front panel assembly. To reassemble your device, follow these instructions in reverse order.

Buy these parts and tools
Download Guide

Step 1 - Battery Connection

  • Power off your iPhone before beginning disassembly.

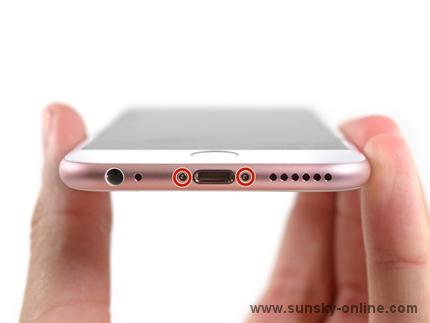

  • Remove the two 3.4 mm Pentalobe screws surrounding the Lightning connector.

Step 2

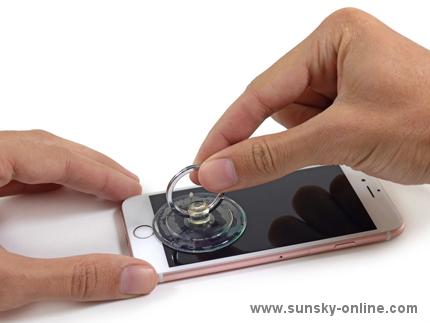

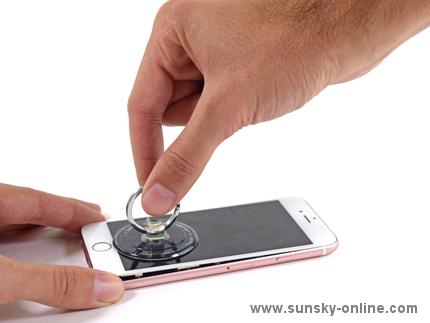

  • If you don't have an LCD Screen Opener, use a single suction cup to lift the front panel:
  • Press a suction cup onto the screen, just above the home button.
  • Be sure the cup is pressed securely onto the screen to get a tight seal.

Step 3

  • There is a notch on the underside of the display just above the headphone jack that is the safest place to begin prying the phone open.
  • Pull up on the suction cup to slightly separate the front panel assembly from the rear case.
  • Take your time and apply firm, constant force. The display assembly is a much tighter fit than most devices and is held down with adhesive.

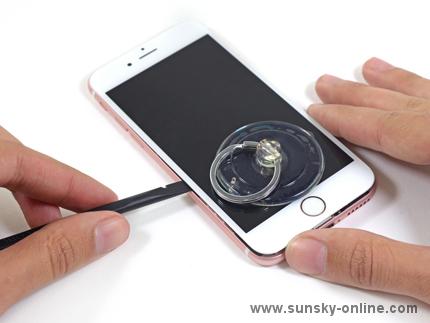

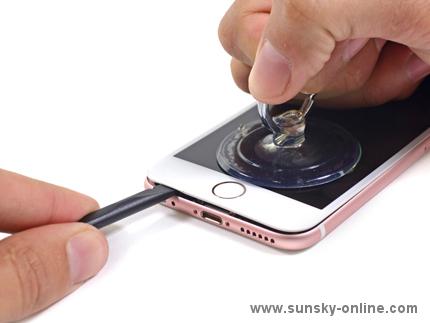

  • Once a small gap has been opened, insert the flat end of a spudger above the headphone jack.

Step 4

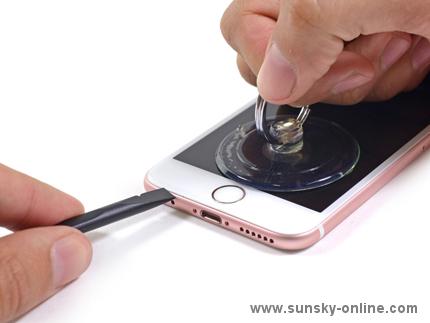

  • Twist the spudger to open the gap more and break it free from the adhesive.
  • Keep pulling up on the suction cup while twisting the spudger.

Step 5

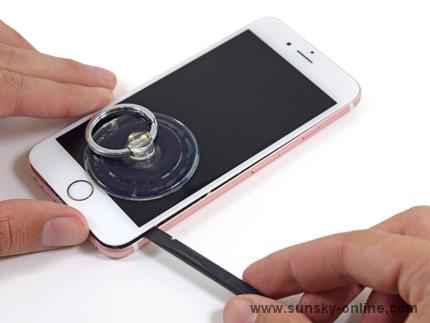

  • Use the edge of a spudger to slice through the adhesive on either side of the phone.

Step 6

  • Use the edge of a spudger to slice through the adhesive on either side of the phone.

Step 7

  • Use the suction cup to open the display, breaking the last of the adhesive.
  • Don't open the display more than 90 degrees, as it is still connected at the top by three cables that may break if stretched.

Step 8

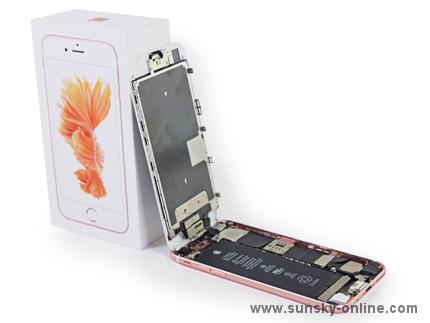

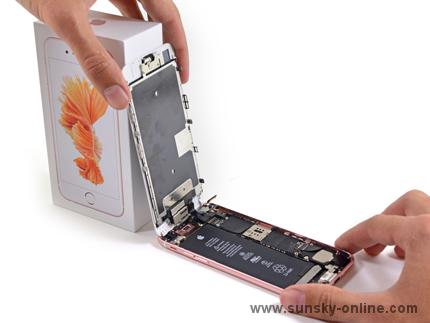

  • Lean the display against something to keep it propped up while you're working on the phone.

Step 9

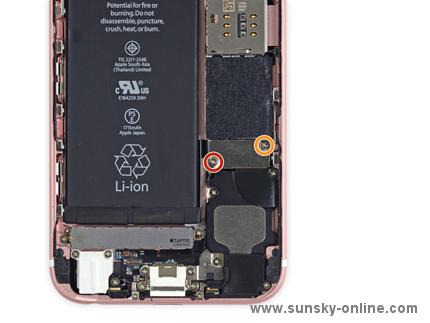

  • Remove the following screws from the battery connector bracket:
  • One 3.0 mm Phillips #00 screw
  • One 2.3 mm Phillips #00 screw

Step 10

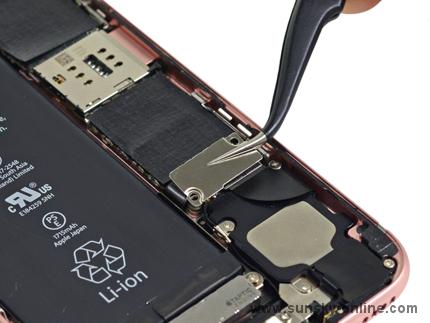

  • Remove the metal battery connector bracket from the iPhone.

Step 11

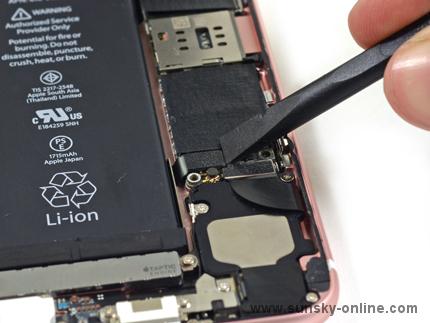

  • Use the flat end of a spudger to disconnect the battery connector from the logic board.
  • Push the connector to the side to ensure it doesn't accidentally make contact and power on the phone while you're working on it.

Step 12 - Display

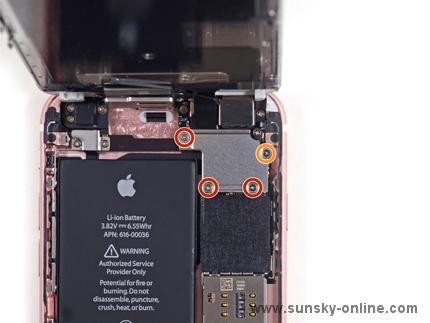

  • While holding the front panel open at about a 90 degree angle, remove the following screws securing the front panel assembly cable bracket:
  • Three 1.3 mm Phillips #00 screws
  • One 3.0 mm Phillips #00 screw
  • Don't lose track of this screw! It's very important that the one 3.0 mm screw goes in the top-right corner of the plate. Anywhere else may cause damage to the logic board.

Step 13

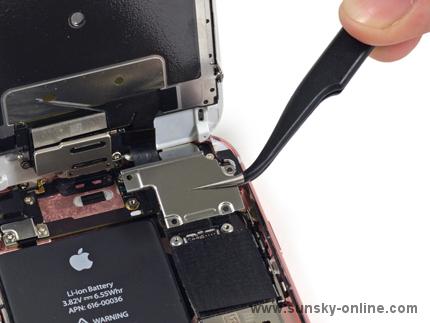

  • Remove the front panel assembly cable bracket from the logic board.

Step 14

  • In the next three steps, take care to pry up only on the cable connectors, and not on their sockets on the logic board.

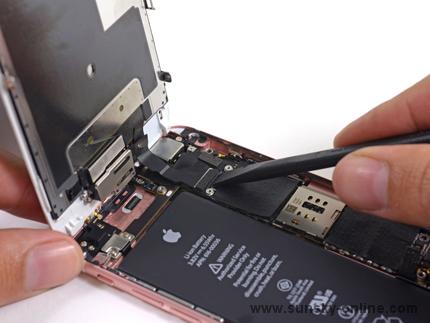

  • Use the flat end of a spudger to disconnect the front-facing camera and sensor cable connector.

Step 15

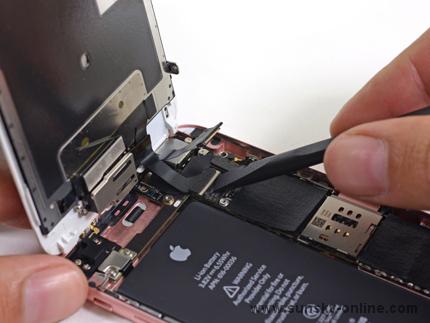

  • Use the flat end of a spudger to disconnect the display data cable connector.
  • When reassembling your phone, the display data cable may pop off its connector. This can result in white lines or a blank screen when powering your phone back on. If that happens, simply reconnect the cable and power cycle your phone. The best way to power cycle your phone is to disconnect and reconnect the battery connector.

Step 16

  • Finally, use the flat end of a spudger to disconnect the digitizer cable connector.

Step 17

  • Remove the display assembly from the rear case.
